CPP film

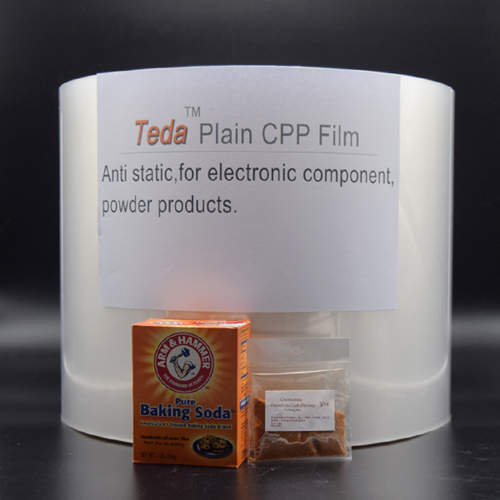

Anti static CPP film
- Width : 150mm - 2400mm
- Thickness: 19 - 70 microns
- Material: PP(polypropylene) by casting
- Layers: 3 layer co extruded

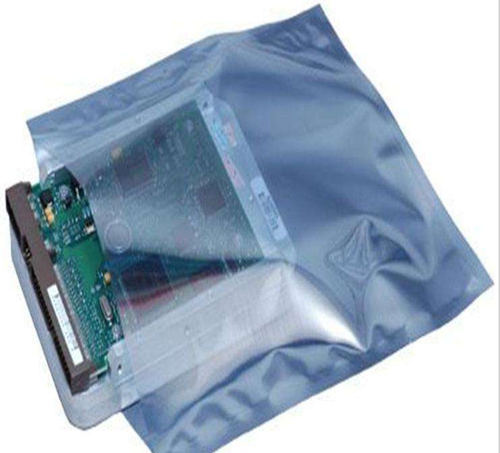

- Product description: Without Static CPP film, to pack powder products or electronic devices.
Description:
The Anti-static CPP film has no static property, it is good to pack powder or the products made power in the sealing program. Like the flour, noodles, dry paste foods ... With anti-static property, it would let strip sealing going good. And also good for packing electronic devices. This anti electric static CPP Film is an co-extruded polypropylene film, one side slipped as the sealing layer, and other side treated with Corona.This common economic CPP film has high gloss, good optics, good printability, high heat resistance on untreated side. It is also good machinability, suitable for printing and lamination with other materials.
To laminate with other material for flexible packaging. Please tell the lamination purpose, the dry lamination, non-solvent lamination or PP extrusion lamination to get right option.
Key Feature:
-Anti-static for seal layer.
APPLICATION:

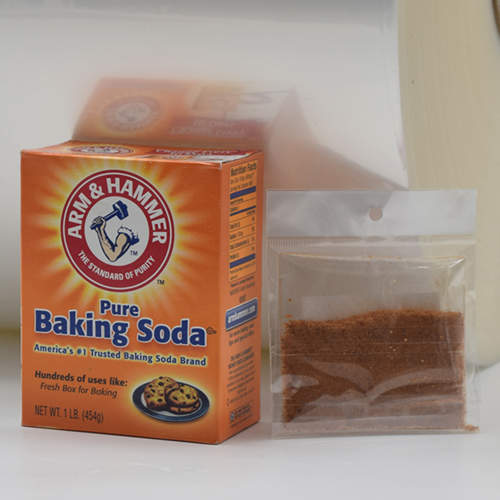

Powder, flour, noodles, dry paste food... Electronic devices packing, or other when anti-static needed.
PROPERTIES |
TEST METHOD |
UNIT |
TYPICAL VALUE |
|
THICKNESS |
D-2673 |
Microns |
30 40 50 60 70 |
|
FILM DENSITY Corona Level/Wetting tensile COEFF OF FRICTION (Dynamic) (Static) HAZE JOINTS NUMBER SECTION FLETNESS |
D-792 D-2578 D-1894 D-1894 D-1003 International International |
gm/cc Dyne/cm - - - m2 - |
0.91 0.91 0.91 0.91 0.91 38 38 38 38 38 0.127 0.138 0.142 0.178 0.179 0.121 0.142 0.138 0.184 0.185 3.46 4.13 3.46 6.78 7.56 ≤1 ≤2mm |
|
TENSILE STRENGTH AT BREAK |
MD* TD* |
D-882 |
MPa |
71.2 61.4 52.4 46.7 45.6 36.1 35.4 34.5 32.6 31.5 |
ELONGATION AT BREAK |
MD* TD* |
D-882 |
% |
693.1 621.4 633.4 645.7 679.4 799.8 724.1 730.3 784.1 772.1 |
HEAT SEAL TEMPERATURE |
1s, 300KPa, 60℃ for under lay |
℃ |
122 124 127 129 131 |
|
HEAT SEALING STRENGTH |
D-882 |
N/15mm |
≥10.3 ≥13.6 ≥17.1 ≥20.8 ≥22.6 |
|
FINISH |
NO Folding, Air bubble fracture, Perforation, Scratches, Impurite, oil. |
|||
EXPLANATION |
*MD= MACHINE DIRECTION *TD= TRANSVERSE DIRECTION Unit 'N/15mm' is just China standard, in different areas, that would be also 'N/25mm'. |
|||
